Facility : Step Ramps



Step ramps should be provided wherever an accessible route crosses a step or kerb.

Slopes of step ramps should be gentle (e.g: less than 1:8).

The surface of kerb ramps should comply with the guidelines for "Ground and Floor Surfaces".

  Reference figure :-

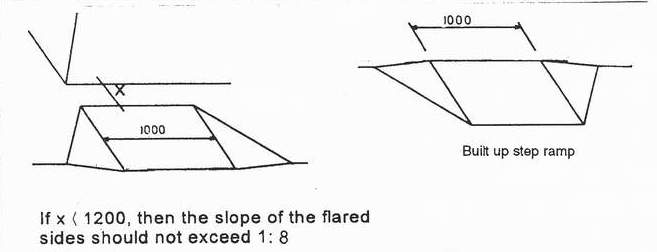

Figure 2.2a : Step Ramps

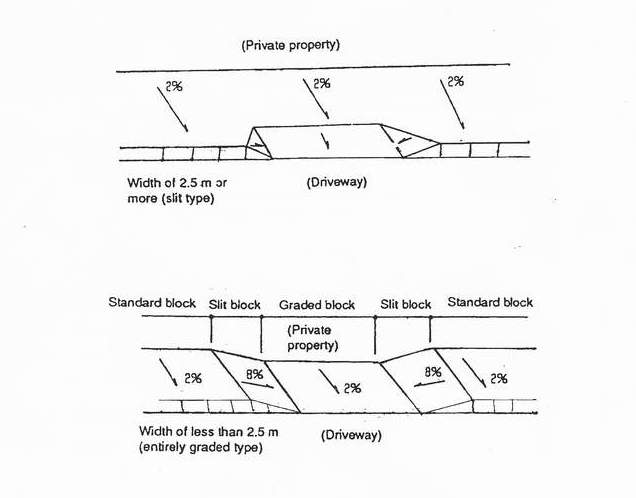

Figure 2.2b :
Grading level differences at vehicle driveways.
