Facility : Steps and Stairs |
|
|
|
|
|
A flight of stairs should have uniform risers and treads. |
|
|
A flight of stair should be of gentle gradient. |
|
|
A flight of stairs should have no open risers. | |
|
|
Nosings of stairs should project as little as possible. | |
|
|
Handrails for stairs should be installed on both sides and continuously. | |
|
|
Handrails for stairs should be easily gripped at a suitable height from the stair going. | |
|
|
Handrails for stair should extend beyond the top and bottom of the stairs. | |
|
|
The rise of flight between landings should be of an appropriate height. | |
|
|
Other requirements for handrails should comply with the guidelines for "Handrails". | |
|
|
Treads of stairs should comply with the guildelines for "Ground and Floor Surfaces". | |
|
|
Stair edges should be in bright contrasting colours. | |
|
|
Stairs should be adequately illuminated. |
|
Reference figure :- |

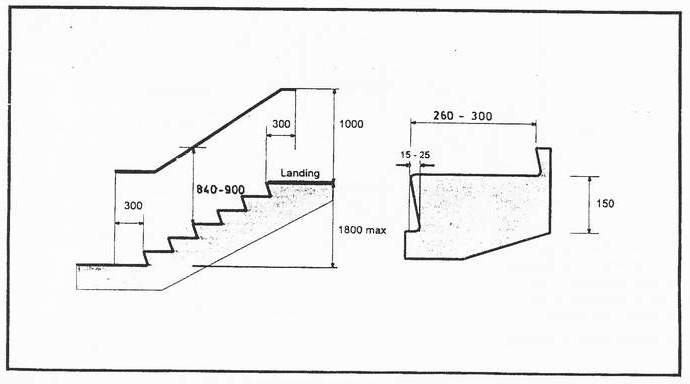

 Figure 2.4a : Stairs |

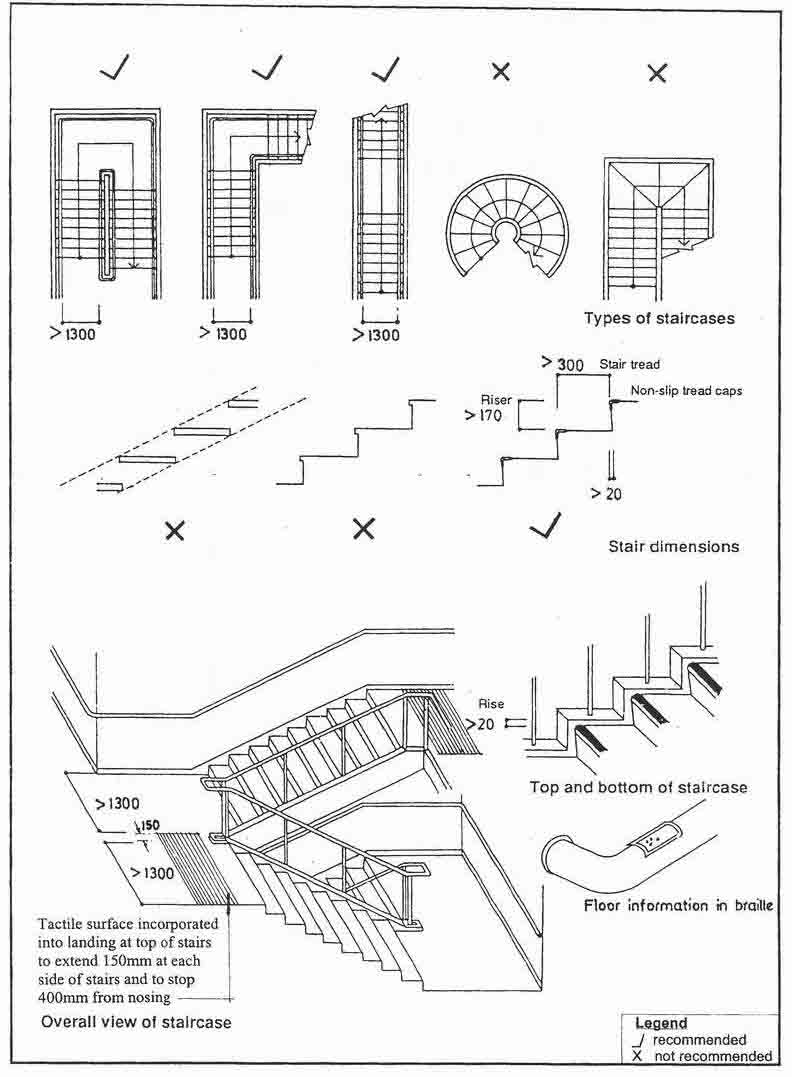

 Figure 2.4b : Stairs |
