Facility : Handrails and Grab Bars

		A handrail or grab bar should be of a diameter/width and strength so that it may easily be grabbed and used as a support (Fig.3.1a).
		If handrails or grab bars are mounted adjacent to a wall, clearance space between the walls and the grab bar should be provided.
		Handrails should have continuous gripping surfaces, without interruptions or obstructions that can break a hand hold.
		If handrails or grab bars are mounted in a recess, the maximum depth and minimum height of the recess must be considered (Fig.3.1a).
		A small plate in Braile should be provided at the beginning and at the end of each handrail/grab bar to indicate its position to persons with visual impairments.
		Handrails/grab should be in a colour that contrasts with the surrounding area.
		Grab bars should be installed to resist a force of at least 1.3 kn applied vertically or horizontally.

Reference figure :-

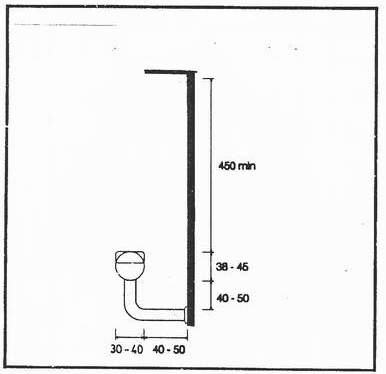

Figure 3.1a : Handrails/Grab bars.
